Description

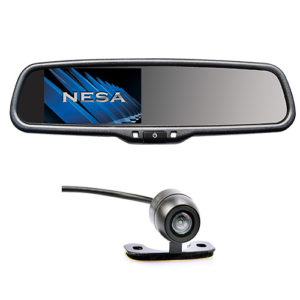

Kit includes mirror and camera.

An affordable replacement mirror with a built in 4.3” LCD monitor. In normal use the mirror looks standard until the car is placed in reverse & the image appears. Mirror has electronically controlled auto-dimming to dim the glare of headlights of cars behind at night. 2 inputs allows for multiple cameras or RCA sources to connect.

Kit comes complete with a CMOS butterfly mount camera with 170 degree view angle, all glass lens and water resistant rating of IP69.

SPECIFICATIONS

Mirror:

• LCD profile wide screen ratio: 16:9
• NTSC/AUTO/PAL
• Brightness (cd/m2) : 250
• Video Inputs : RCA x 2
• LCD position: Left
• Power requirement: 12V DC
• Power consumption:
• Operating temperature range:  -20°C ~ +70°C
• Storage temperature range:  -30°C ~ +80°C
• Dimensions: 270 mm X 82mm X 43mm
• Approx weight:  490g (including bracket)
• Monitor bracket & silicon tape included
• 2.5m extension cable

Camera:

• CMOS sensor
• View Angle: 170°
• Effective Pixels:  640 x 480
• TV system: NTSC
• Waterproof: IP67
• Power: 12vDC
• 5m cable with mini plug-RCA included
