Description

Tow Truck Kit – Front Facing Camera and Tray Camera with 10″ Touchscreen Quad View Monitor and Multi-Channel DVR and GPS Tracking

WA legislation requires all tow trucks involved in crash towing to have video recordings travelling to and from a crash site and during loading of the crash vehicle, recorded at a minimum of 720p. The footage is to be kept for three months after each tow, and to be shared with the Department of Transport on request. Read the full details on the Department of Transport WA website HERE (under dashcams section).

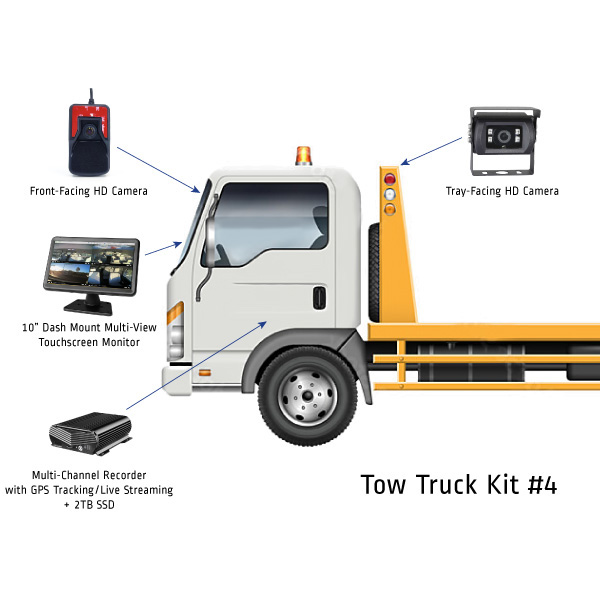

Our CK-TOW4 Tow Truck Kit consists of a Full HD front facing windscreen mount camera, a heavy duty waterproof Full HD camera for the tray, a 10″ dash mount Full HD touchscreen monitor with full DVR control and a Full HD multi-channel DVR with a 2TB SSD and GPS Tracking. A dual camera Tow Truck solution for recording both front and rear to comply with WA legislation. Record up to 1200 hours in 720p HD or 600 hours in 1080p Full HD from each camera.

The CK-TOW4 Tow Truck Kit includes:

AHD-FFWM: Front Facing Windscreen Mount Full HD Camera

Mounted with strong 3M double sided tape to your windscreen, the AHD-FFWM has a Sony Stravis CMOS sensor for high quality 1080p video. You can adjust the vertical angle of the camera to achieve the perfect view angle. The AHD-FFWM has a built in microphone for audio recording and is house in a solid metal case. Click here for more specs.

CCD-073AHD: Heavy Duty Full HD Camera for Rear Tray

The CCD-073AHD is a premium quality Sony Full HD 1080p CCD sensor encased in a heavy-duty metal housing with an IP69K water resistant rating. With adjustable view angle, flexible installation with its U bracket, super wide 130°, Infrared LED’s for low light image enhancement and built in microphone. Click here for more specs.

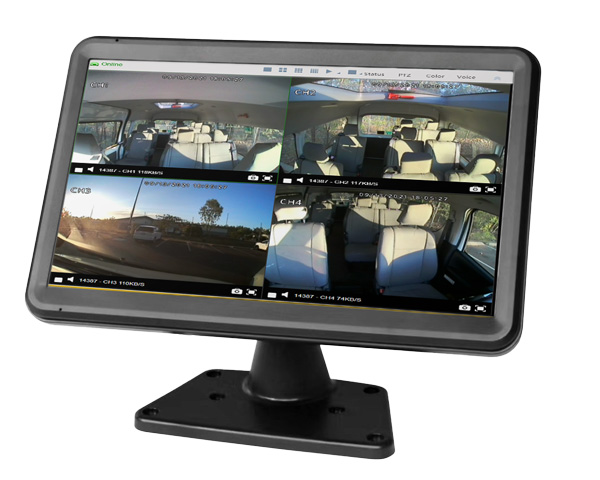

FM-MDVRAHD10T: 10″ Touchscreen Quad View Full HD Monitor with DVR Control

This 10″ touch screen monitor is specifically designed for use with the Fleetminder MDVR4AHD Multi-Channel Driver Recorder System. No need to use the MDVR4AHD’s remote, as this monitor is seamlessly integrated with full touch screen control of the menu to change settings or access recordings, as well as manual switching between camera views on the fly. Multiple view modes depending on how many cameras you have setup. This makes setup and operation of the MDVR4AHD much simpler and user friendly.

The screen itself is AHD 1080p compatible with a crystal clear IPS LED capacitive touch screen. Vivid and bright with 500cd/m² brightness and ultra wide 180 degree view angle. Runs on 12~36v DC so with operate on any truck. All mounted on a solid dashboard mount with a fully adjustable ball & socket swivel to position the monitor angle.

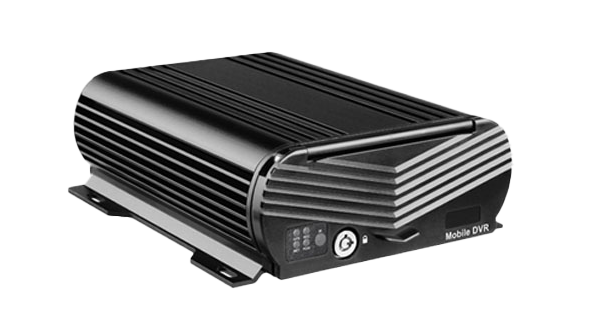

FM-MDVR4AHD: Multi-Channel DVR with GPS Tracking

The FM-MDVR4AHD is a heavy duty, Full HD 4 channel DVR with GPS and our Fleetminder GPS Tracking. It can connect up to four cameras, each with an individual trigger to record real time video in Full HD 1080p or 720p for longer record times. Recordings are stored on an internal 2TB SSD with an approximate record times of 1200 hours in 720p HD or 600 hours in 1080p Full HD for each camera. What makes this different from our standard DVR included in the other kits is the ability to transmit live streaming Full HD 1080p video over the 4G network, has built in live vehicle tracking, with full access to our Fleetminder GPS Tracking platform (mobile app also available for free). Please note, Fleetminder GPS Tracking requires an annual subscription to our tracking platform.

Additional benefits of our Fleetminder GPS Tracking solution include:

Monitoring your fleet vehicles. See your entire fleet on your computer screen at any given time, dispatch your nearest driver quickly and get ahead of the competition with faster response times, accurate ETAs.

Logging speeding and harsh driving occurrences which puts the safety of your drivers and the reputation of your business at risk.

Reduce administration Costs: Reduce unnecessary overtime and administration costs associated with driver communications, logbook, time sheet and invoicing enquiries.

Gain valuable business insights through a range of reporting options.

For more about Fleetminder GPS Tracking, visit our website here.

Cables & Extension Cables

The CK-TOW4 kit includes a 6m cable for the font camera to DVR, 2x 20m cables for the tray camera (40m total for tilt trays) to the DVR and a 6m cable for the monitor to DVR. Additional extension cables in 6m, 10m or 20m available (not included in price).

Installation (not included in price)

For installation, please contact us and we can put you in touch with one of our trusted installers.
