Description

Tow Truck Kit – Front Facing Camera and Tray Camera with 7″ Touchscreen Quad View Monitor and Multi-Channel DVR

WA legislation requires all tow trucks involved in crash towing to have video recordings travelling to and from a crash site and during loading of the crash vehicle, recorded at a minimum of 720p. The footage is to be kept for three months after each tow, and to be shared with the Department of Transport on request. Read the full details on the Department of Transport WA website HERE (under dashcams section).

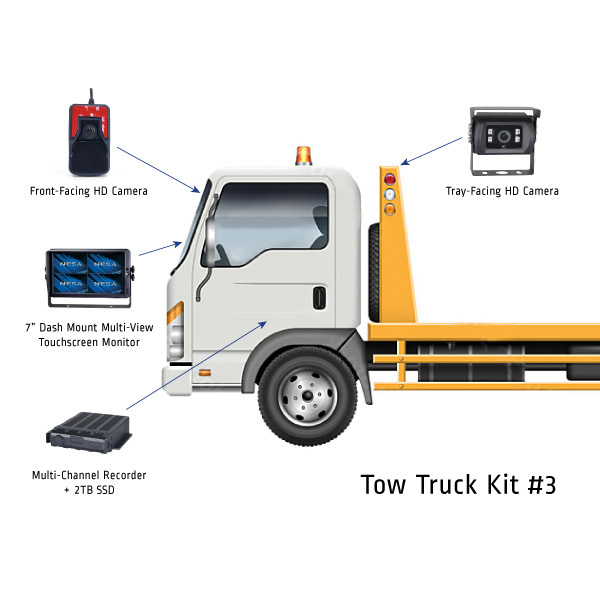

Our CK-TOW3 Tow Truck Kit consists of a Full HD front facing windscreen mount camera, a heavy duty waterproof Full HD camera for the tray, a 7″ dash mount Full HD touchscreen monitor with full DVR control and a Full HD multi-channel DVR with a 2TB SSD. A dual camera Tow Truck solution for recording both front and rear to comply with WA legislation. Record up to 1200 hours in 720p HD or 600 hours in 1080p Full HD from each camera.

The CK-TOW3 Tow Truck Kit includes:

AHD-FFWM: Front Facing Windscreen Mount Full HD Camera

Mounted with strong 3M double sided tape to your windscreen, the AHD-FFWM has a Sony Stravis CMOS sensor for high quality 1080p video. You can adjust the vertical angle of the camera to achieve the perfect view angle. The AHD-FFWM has a built in microphone for audio recording and is house in a solid metal case. Click here for more specs.

CCD-073AHD: Heavy Duty Full HD Camera for Rear Tray

The CCD-073AHD is a premium quality Sony Full HD 1080p CCD sensor encased in a heavy-duty metal housing with an IP69K water resistant rating. With adjustable view angle, flexible installation with its U bracket, super wide 130°, Infrared LED’s for low light image enhancement and built in microphone. Click here for more specs.

NSM-DVR42T7: 7″ Touchscreen Quad View Full HD Monitor with DVR Control

Specifically designed for use with the DVR-4200AHD, the NSM-DVR42T7 supports AHD 1080p/720p cameras to display rich and detailed video. The intuitive capacitive touchscreen enables you to touch a camera feed, that camera switches to full screen, touch again to go back to multi-camera mode. The NSM-DVR42T7 also fully controls the on-screen menu and functions of the DVR so no need to use the IR remote for the DVR. Makes things much simpler and easier for use with the DVR system. With many different view modes available and a multitude of setup options, the NSM-DVR42T7 can trigger and display blind spot cameras, reverse camera etc if installed. Click here for more specs.

DVR-4200AHD: Multi-Channel DVR

The DVR4200AHD is a heavy duty, water proof, Full HD 4 channel DVR with GPS. It can connect up to four cameras, each with an individual trigger to record real time video in Full HD 1080p or 720p for longer record times. Recordings are stored on an internal 2TB SSD with an approximate record times of 1200 hours in 720p HD or 600 hours in 1080p Full HD for each camera. USB data transfer, so no need to remove the internal drive, you can export selected footage straight to the USB if you need to provide footage to the DoT. GPS to log the position and speed of the vehicle. Playback/monitor direct to the NSM-DVR42T7 monitor. An ideal solution for tow trucks, who require long recording times. Click here for more specs.

Cables & Extension Cables

The CK-TOW3 kit includes a 6m cable for the font camera to DVR, 2x 20m cables for the tray camera (40m total for tilt trays) to the DVR and a 6m cable for the monitor to DVR. Additional extension cables in 6m, 10m or 20m available (not included in price).

Installation (not included in price)

For installation, please contact us and we can put you in touch with one of our trusted installers.
