Description

Tow Truck Kit – Single Front Facing Camera with 7″ Monitor and Multi-Channel DVR

WA legislation requires all tow trucks involved in crash towing to have video recordings travelling to and from a crash site and during loading of the crash vehicle, recorded at a minimum of 720p. The footage is to be kept for three months after each tow, and to be shared with the Department of Transport on request. Read the full details on the Department of Transport WA website HERE (under dashcams section).

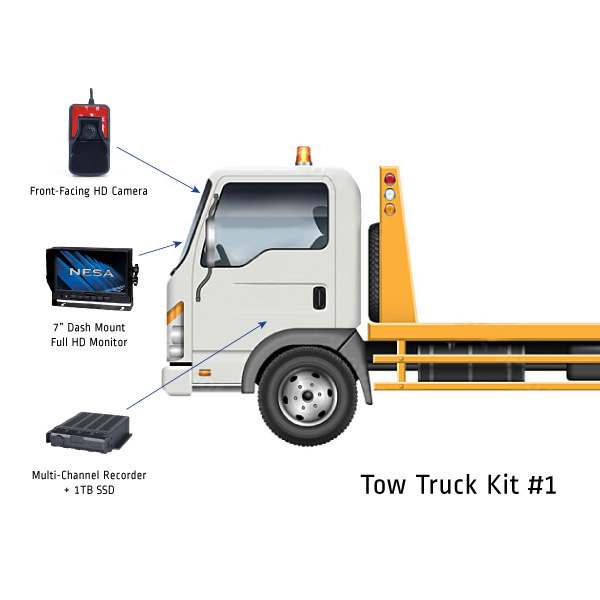

Our CK-TOW1 Tow Truck Kit consists of a Full HD front facing windscreen mount camera, a 7″ dash mount Full HD monitor and a Full HD multi-channel DVR with a 1TB SSD. A simple Tow Truck solution for recording front only to comply with WA legislation. Record up to 1200 hours in 720p HD or 600 hours in 1080p Full HD.

The CK-TOW1 Tow Truck Kit includes:

AHD-FFWM: Front Facing Windscreen Mount Full HD Camera

Mounted with strong 3M double sided tape to your windscreen, the AHD-FFWM has a Sony Stravis CMOS sensor for high quality 1080p video. You can adjust the vertical angle of the camera to achieve the perfect view angle. The AHD-FFWM has a built in microphone for audio recording and is house in a solid metal case. Click here for more specs.

NSM-7300AHD: 7″ Full HD Monitor

NSM-7300AHD is built tough with a solid reputation for reliability. Able to use newer technology Analogue High Definition (AHD) 1080p cameras as well as the older standard definition cameras. Can also mix different camera types if multiple cameras are already installed. Features include: Inputs for up to 3 cameras with triggers for each, manual camera switching via button below the screen (only displays one camera at a time), high contrast display, high brightness, built in sun shield and a solid U bracket for dash mounting. Can operate on 12v or 24v systems, and outputs 12v to the cameras even when used on 24v.

Supplied with 3 x looms as well as 4 pin to RCA adapters for universal camera connection. Click here for more specs.

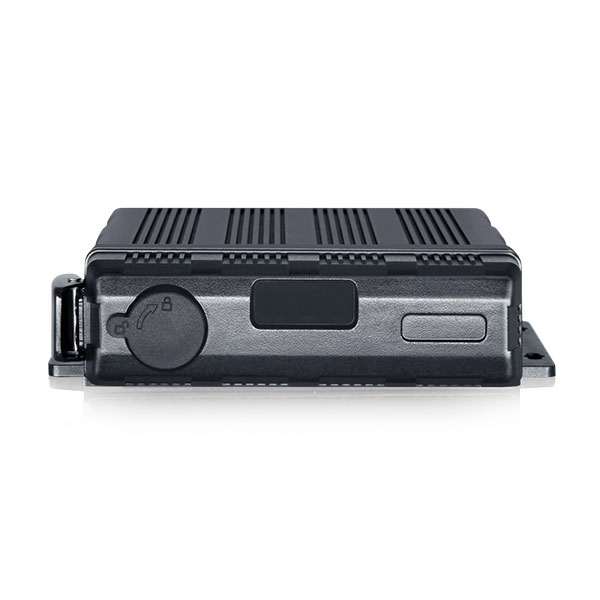

DVR-4200AHD: Multi-Channel DVR

The DVR4200AHD is a heavy duty, water proof, Full HD 4 channel DVR with GPS. It can connect up to four cameras, each with an individual trigger to record real time video in Full HD 1080p or 720p for longer record times. Recordings are stored on an internal 1TB SSD with an approximate record times of 1200 hours in 720p HD or 600 hours in 1080p Full HD. USB data transfer, so no need to remove the internal drive, you can export selected footage straight to the USB if you need to provide footage to the DoT. GPS to log the position and speed of the vehicle. Playback/monitor direct to the NSM-7300AHD monitor. An ideal solution for tow trucks, who require long recording times. Click here for more specs.

Cables & Extension Cables

The CK-TOW1 kit includes a 6m cable for the font camera to DVR and a 6m cable for the monitor to DVR. Additional extension cables in 6m, 10m or 20m available (not included in price).

Installation (not included in price)

For installation, please contact us and we can put you in touch with one of our trusted installers.
