Description

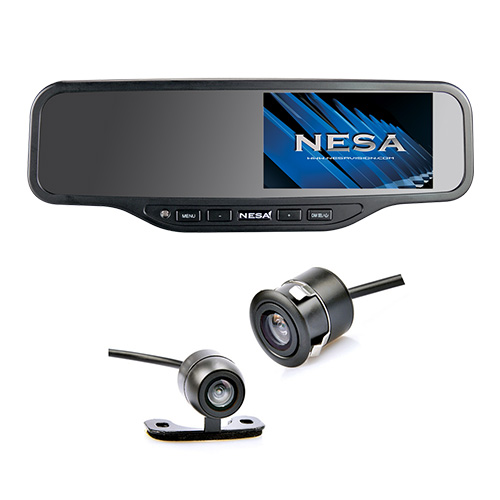

Kit includes NSR-42D mirror and CCD-DUAL170 camera.

The NSR-42D is a large rear view mirror with built in 4.2″ reversing monitor. Can be mounted via replacement bracket or strap mounted over existing mirror. Powered by 12v or 24v. Mirror has anti-glare coating and the screen is invisible when not in use.

The CCD-DUAL170 is a versatile CCD micro camera supplied with 2 heads to allow for a choice of mounting options. The butterfly mount is used to screw to number plates or under tailgate handles while the spare head allows you to flush mount into the bumper. High resolution sensor with 750 TV lines and 976 x 592 pixels. The camera cable connects via a mini plug to allow threading through small drill holes.

SPECIFICATIONS

Rear View Mirror:

• 4.2″ Monitor
• 12V & 24DC
• Resolution: 320 x 234
• Contrast Ratio: 300
• System: PAL/NTSC
• High-low Voltage Protection
• Short Circuit Protection
• Anti-glare Treatment
• Park assist lines for easy parking
• Signal Sense Power On
• Built-in speakers (2)
• Bracket or strap on mounting
• Will suit a large variety of vehicles
• Dimensions: 276.2mm x 91mm x 30mm
• Operating temperature range: -20°C ~ +70°C
• Monitor bracket & silicon tape included
• 5m Extension cable

Camera:

• CCD sensor
• View Angle: 170°
• Horizontal Resolution: 750 TV lines
• Effective Pixels:  976 x 592
• TV system: NTSC
• Minimum Illumination: 0.1Lux
• White Balance: Auto
• Waterproof: IP67
• Power: 12vDC
• 6m cable with mini plug-RCA included
